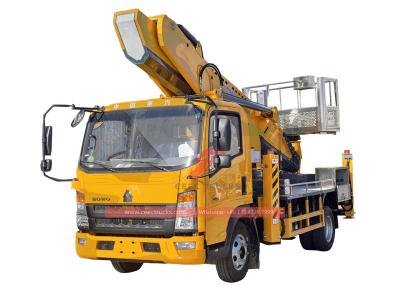

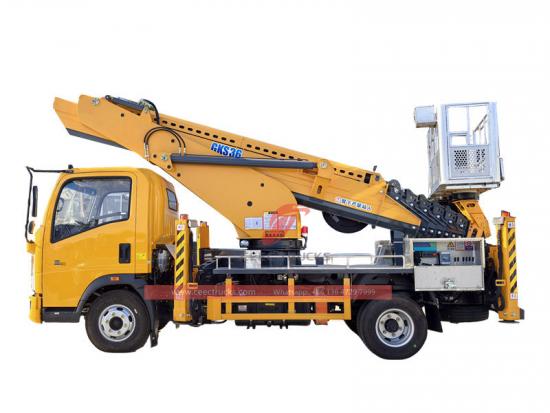

Автовышка Howo 22 м

Автовышка HOWO 22 м — это специализированный инженерный грузовик, сочетающий в себе превосходные технические характеристики и безопасность. Построенный на полноприводном шасси Howo, грузовик оснащен двигателем ISF3.8S3154 с максимальной мощностью 154 лошадиные силы и полной массой 10 000 кг, что обеспечивает гибкое и мощное управление. duty aerial platform truck has a maximum working height of 22 meters and a maximum operating radius of 12 meters.

Происхождение продукта:
China CEEC Trucks
Работоспособность:
22m
Размеры (мм):
6350*2200*3000 mm
Колесная база (мм):
3800
Мощность двигателя:
154HP
Тип двигателя:
ISF3.8S3154
Привод оси:
4x2,LHD
Коробка передач:
WLY6TS55 5-shift gearbox,manual
Замечания:
Insulation bucket can be achieved

Запрос сейчас

Он HOWO 18m aerial platform truck is a professional engineering special truck that integrates excellent technical performance and safety design. Built on the Howo light duty chassis, the truck is equipped with a ISF3.8s3154 engine with a maximum output power of 154 HP and a total vehicle mass of 8 300kg, which is flexible and powerful. The Howo light duty aerial platform truck has a maximum working height of 18 meters and a maximum working radius of 6 meters, and adopts a hydraulic static balance system to ensure stability.

Its unique H-type hydraulic outrigger design is equipped with a two way hydraulic locking mechanism to ensure stability during operation. The Howo manlifter truck is also equipped with a manual and wireless remote control dual operating system, with a platform rated load of 200 kg, 360° hydraulic rotation, and built-in multiple safety protection devices, such as automatic out-of-bounds limit, emergency stop device and leakage protection.

Howo 22m aerial platform truck

*HOWO Light 22m Aerial Platform Truck *

* HOWO 22m High Altitude Work Vehicle *

------------------------------------------------------------------

CEEC Trucks is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.

✦ Product Defination and Introduction « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model

Cummins model with 154 HP and Euro 2,3,4

2. Upper Body material: 6mm thick high-quality steel for prolonged service lier
carbon steel or stainless steel can be choose.

3. Capacity : maximum lifting height of 22 meters,

maximum lifting capacity of 250kg (within the operating radius)

360° slewing capability

4. Options Equipment: High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 12ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories

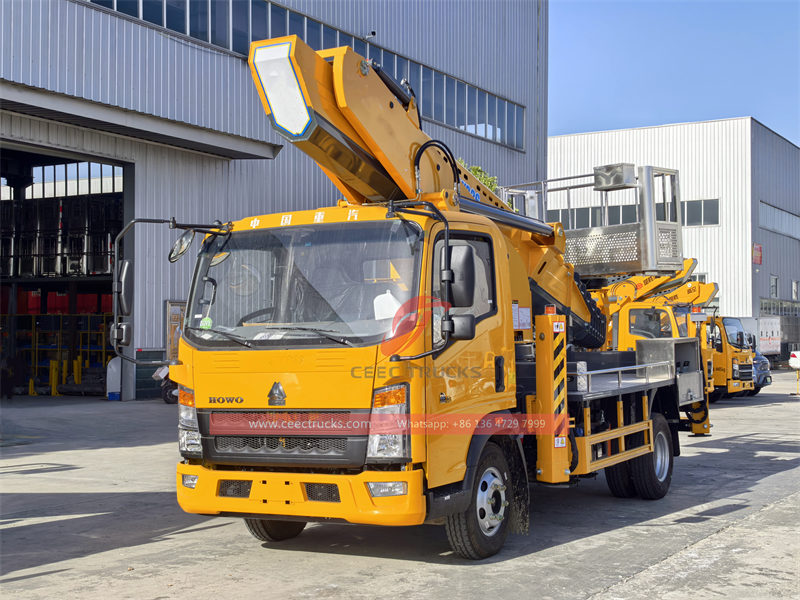

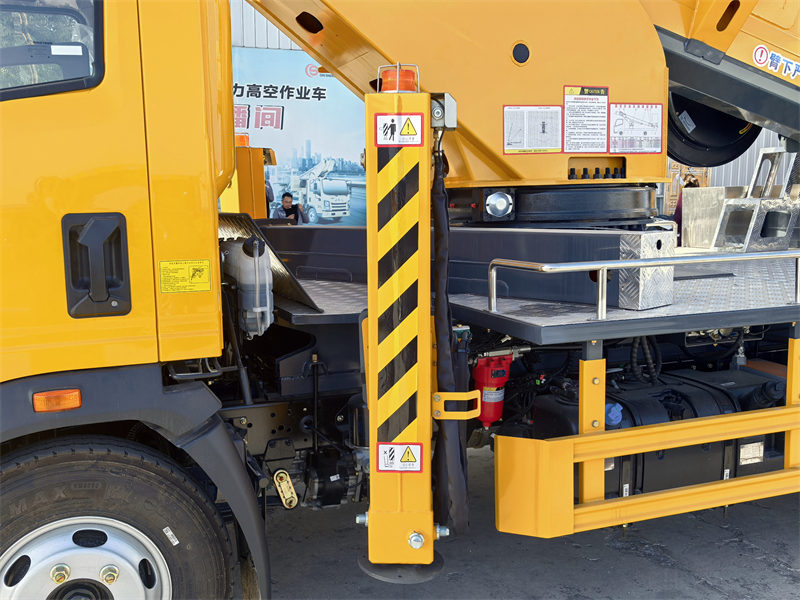

Howo 154HP manlift truck

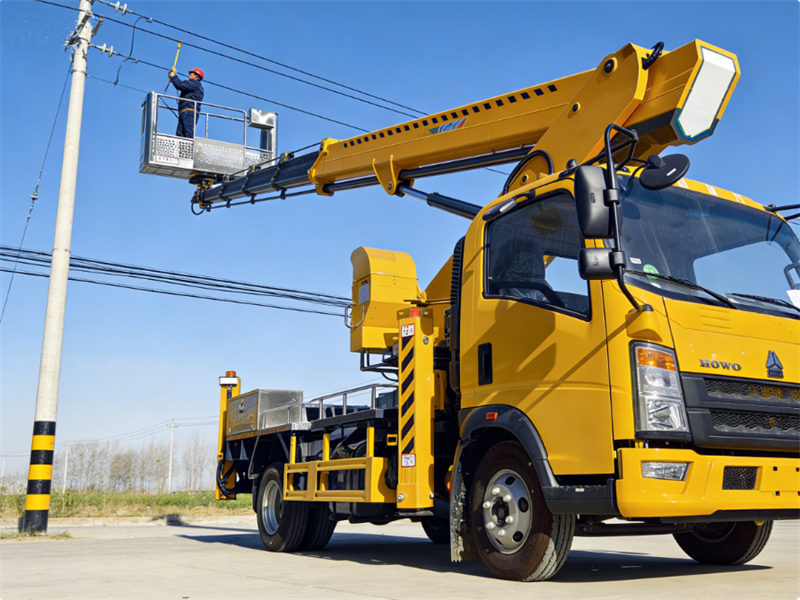

Howo aerial work platform truck

✦ Product Parameter for Howo manlift truck truck « « «

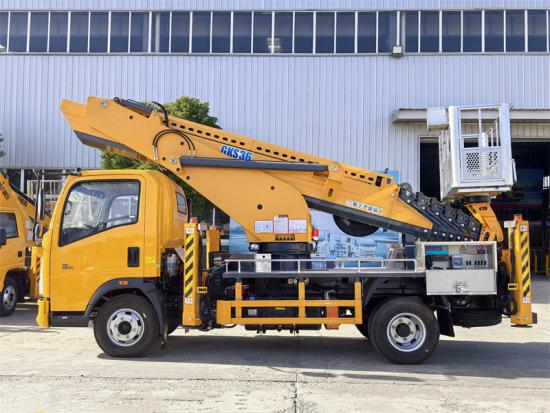

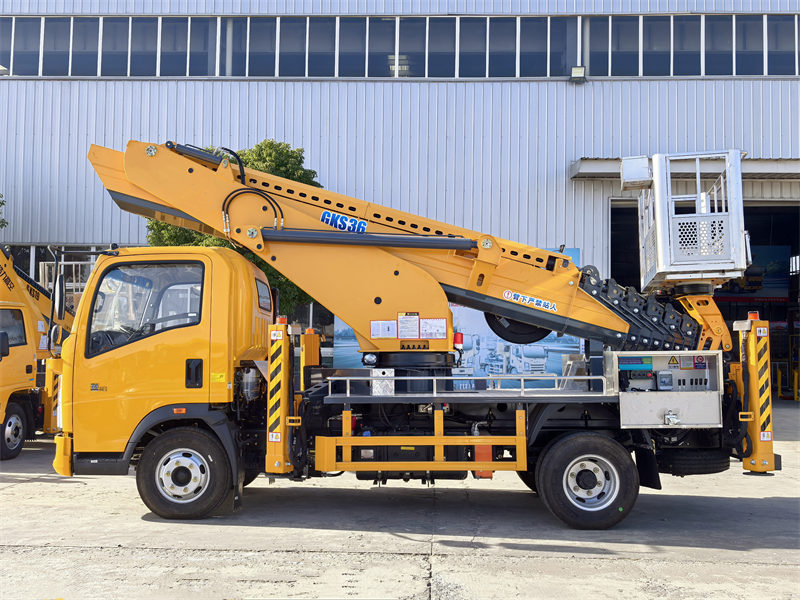

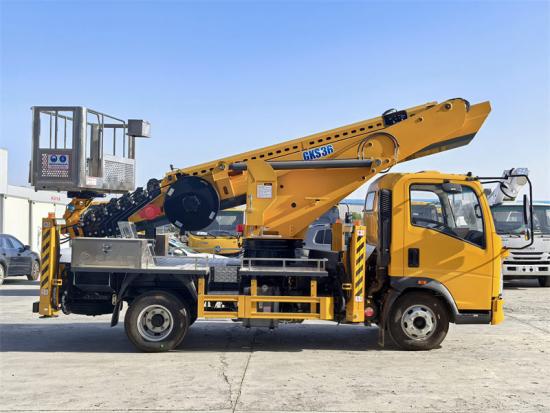

Howo 22m aerial platform truck

Howo 22m aerial platform truck
Vehicle Description
Overall dimensions	6 3 502 20 03000mm
GVW	1000 0kg
Curb weight	4 4 65kg
Chassis brand	Howo
Traction type	4X2

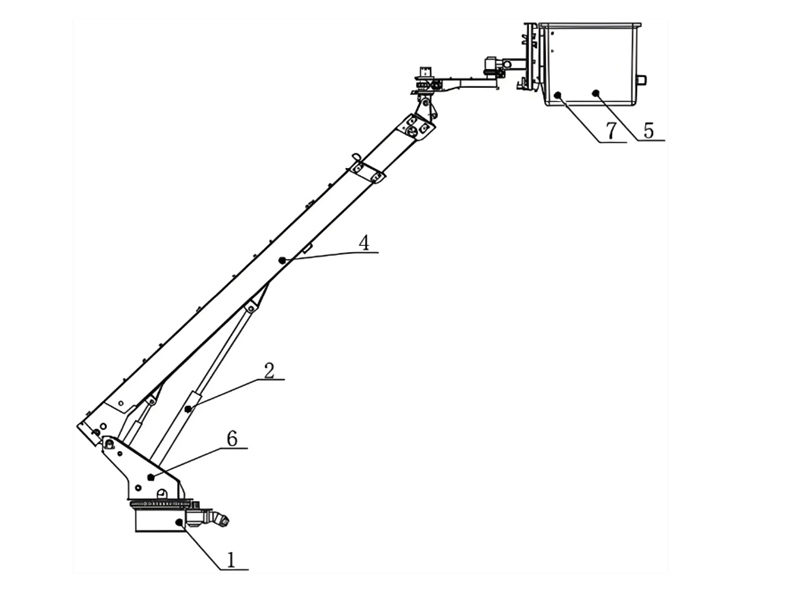

Up-parts specification
Arm	Model	Three arms telescopic
	Max working height	22 m
	Maximum operating range	7m
	Maximum operating range height	9m
	Maximum operating height operating range	2.2m
	Elevation angle	-12° ～ 80°
	Working angle	360°
Landing leg	Type	H-type
	Longitudinal span	2430mm
	Transverse span	1670/2780mm

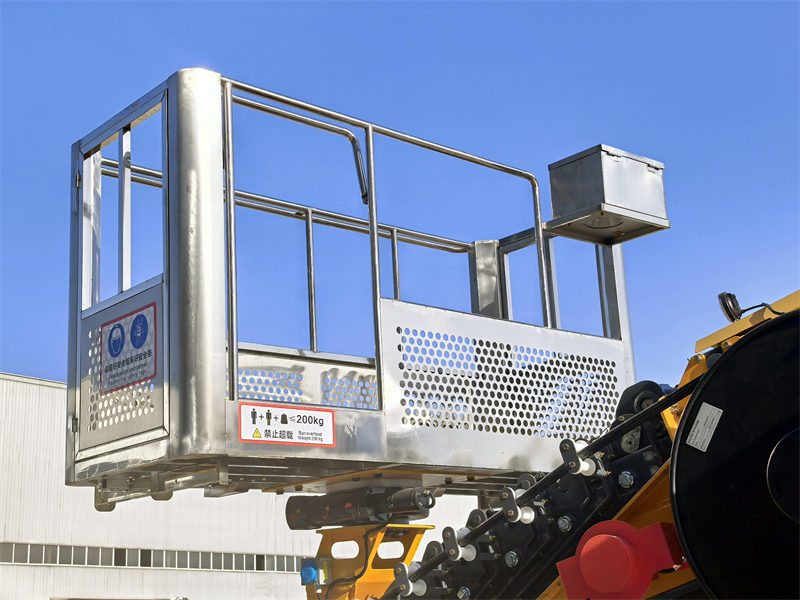

Hanging basket	Rated load	≤200kg
	Dimension	1080×610×1100mm
	Leveling type	Mechanical rod

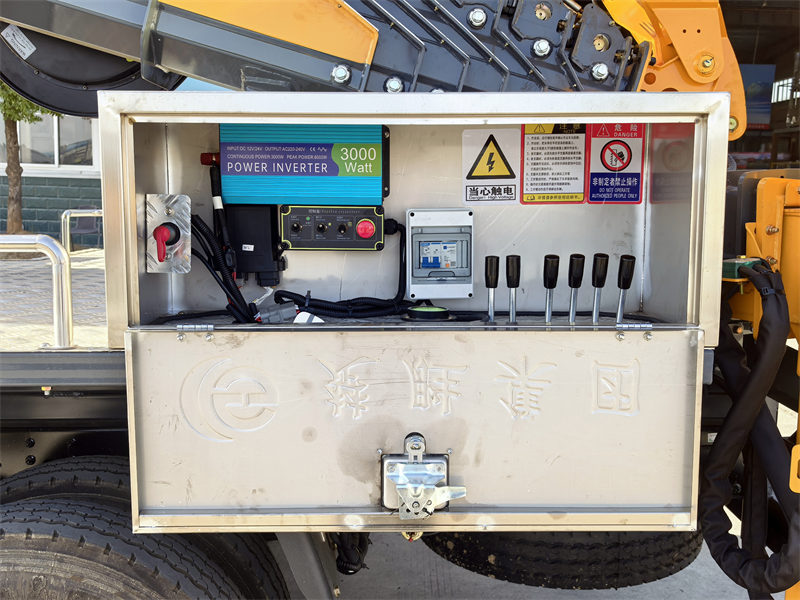

Hydraulic system	Hydraulic valve	Manual
	Working pressure	16Mpa
	Oil cylinder	Equipped with lock function
Operation type	Both hanging basket and revolving mechanism
Main structure	Material	High quality carbon steel and profiles, with slip-proof decorative steel plates
	Tool box	Mould stamping door with stainless steel door lock
	Fencing	Stainless steel tube
	Steps	With steps on drivers’ side
	Guard railing	High quality cold bending carbon steel profile; High strength
	Wheel casing	Injection mold molding, beautiful, high strength

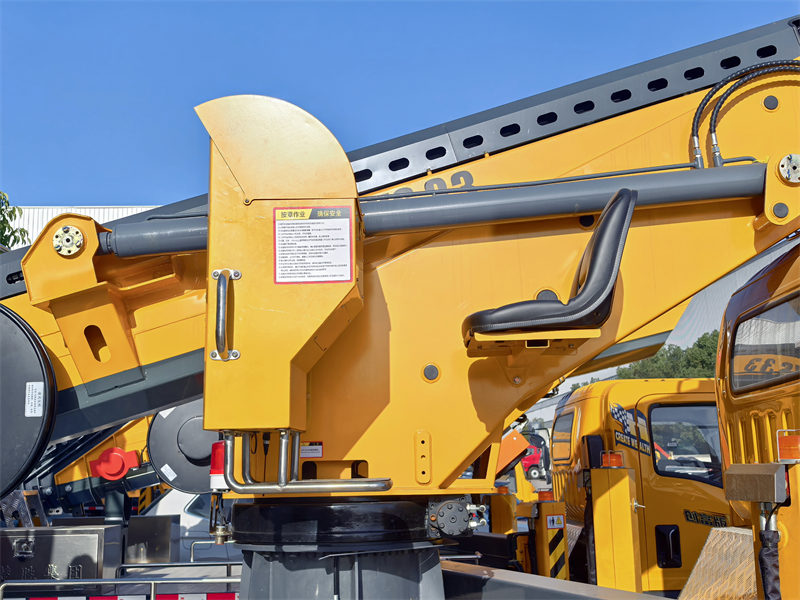

Rotary table	Supporting Boom	Low alloy steel plate welding
	Slewing bearing	Single row of four - point contact ball belt outer teeth
	Reduction gears	Planetary gear type
	Motor	Axial piston motor
Chassis Description
Chassis model	Howo light-duty
Cab	single row, with A/C
Wheelbase	3 800 mm
Tire specification	8.25R16
Tire quantity	6+1 units
Engine	Engine model	ISF3.8S3154
	Emission level	Euro 3
	Displacement/output	3760 ml/88kw
	Horse power	1 54 HP
Gear box	Model	WLY6TS55
Gear box	Number of gears	5 forward gears& 1 reverse
Brake system	Full air brake
Axle	Front	4 .5T
Axle	Rear	7 .8T
Suspension	Front	Leaf springs
Suspension	Rear	Leaf springs
Fuel tanker	Type	Carbon steel tanker,with lockable cap
Fuel tanker	Capacity	140L

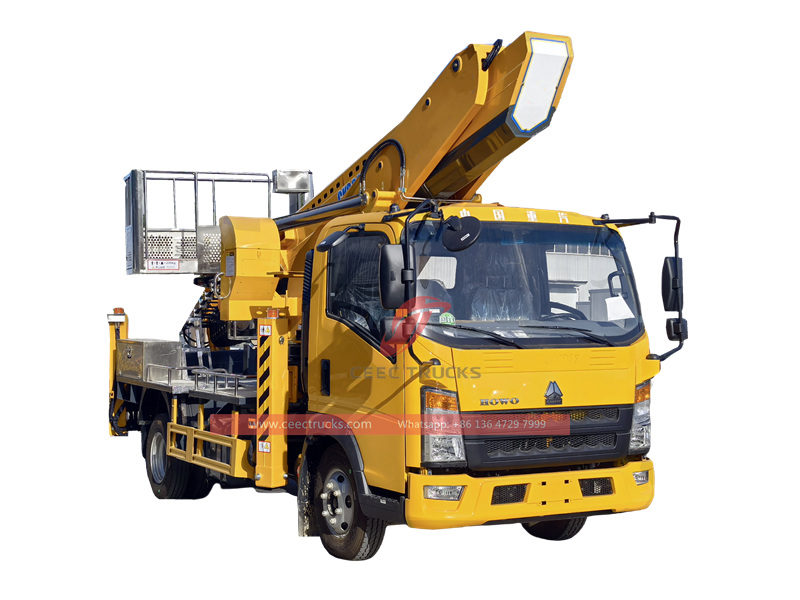

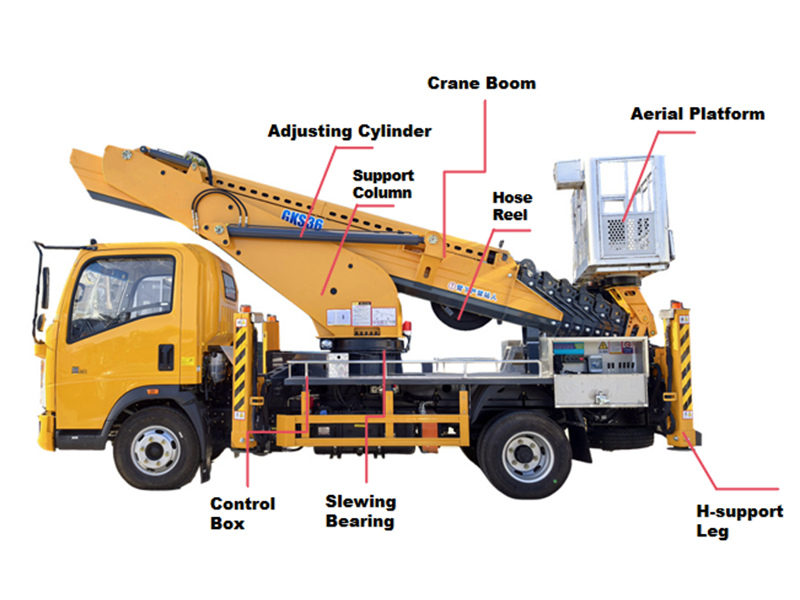

Howo 22m manlift truck

✦ Safety Testing of Howo 22m High Manlift Truck « « «

⇒ Before leaving the factory, the equipment undergoes a dynamic load test with a coefficient of 1.25 times the rated load and a static load test with a coefficient of 1.5 times the rated load.

⇒ All key structural components undergo tens of thousands of fatigue cycles and destructive testing to ensure the equipment's safety and reliability.

⇒ Comprehensive safety devices are included, including cylinder and outrigger retraction devices, access interlocks, emergency stop devices, soft leg protection devices, extreme deceleration, and emergency manual override systems.

⇒ Key structural components are all welded from low-alloy, high-strength steel for high strength and light weight. These components have been thoroughly verified through numerous tests to ensure precise matching of the structural, electrical, and hydraulic systems.

✦ Technical indicators of key subsystems « « «

♦ Hydraulic power system: Use load-sensitive proportional valve group, pressure fluctuation is controlled within ±0.5MPa, dual pump confluence system needs to meet 0-100% flow stepless adjustment, minimum starting pressure ≤1.2MPa.

♦ Intelligent control system: The CAN bus architecture needs to meet ASIL-B safety level, equipped with millimeter wave radar + visual fusion anti-collision system, detection distance ≥15 meters.

♦ Emergency safety device： The response time of the dual redundant braking system is less than 100ms, the fall protection device needs to meet the EN12159 standard, and the stopping distance is less than 0.5 meters.

✦ Advanced manufacturing process requirements « « «

♦ Welding process control : The arm welding adopts narrow gap submerged arc welding, and the weld flaw detection must meet the highest standard of ISO5817-B grade welds. The overall stress relief treatment after welding, the residual stress ≤15% of the material yield strength.

♦ Assembly precision management : The arm section matching clearance is less than 0.05mm/m, the straightness error is less than 1/2000, and the slewing bearing assembly clearance is controlled in the range of 0.03-0.08mm.

♦ Surface treatment process : The composite coating system (hot spray zinc + polyurethane) is salt spray resistant >2000h, the key friction pair surface is laser cladding treated, and the hardness reaches HRC58-62 .

-------------------------------------------------------------------------------------------------------

● China best Howo aerial platform truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service

⇒ Products--100% Customized Level One!

⇒ Transportation--100% Safety, Convenience, Efficient!

⇒ Services--7days + 24hours Safetify Service!

»»» CEEC trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Howo Cummins diesel engine, super powerful

★ Expert for producing Howo Manlifter Truck over 10 years with good reputation

★ High quality carbon steel material / Customized Fiberglass material for insulation

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for Howo aerial work platform trucks

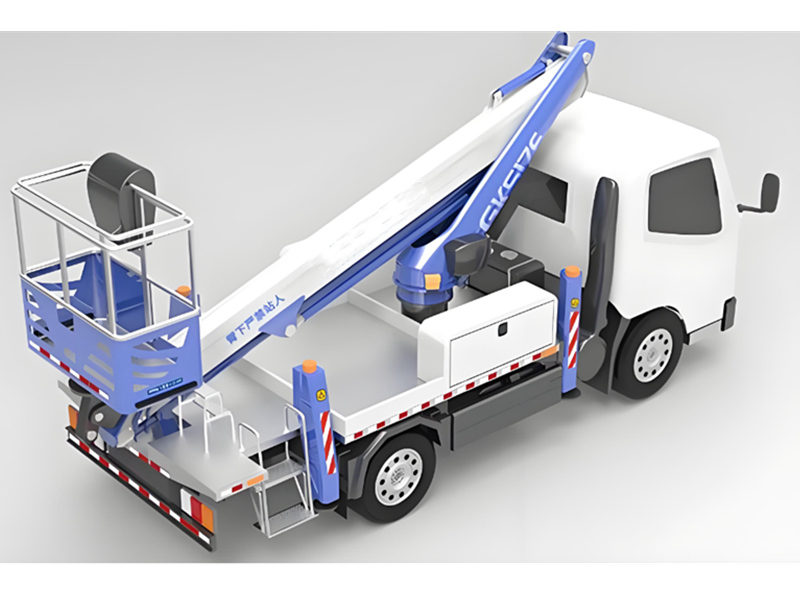

Howo 22m aerial platform truck
