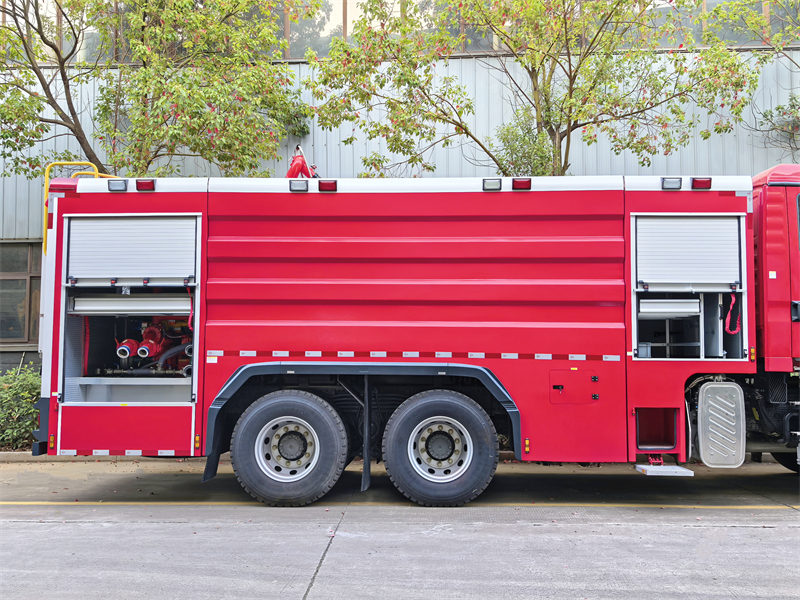

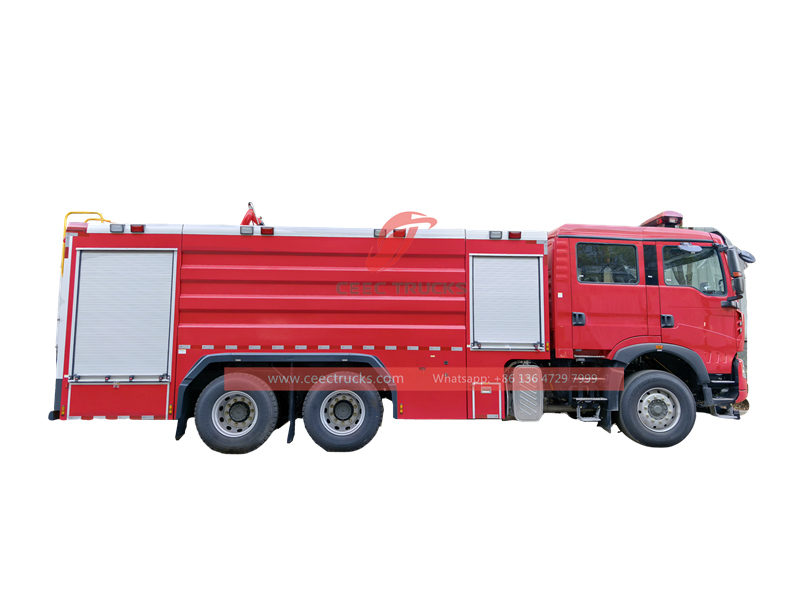

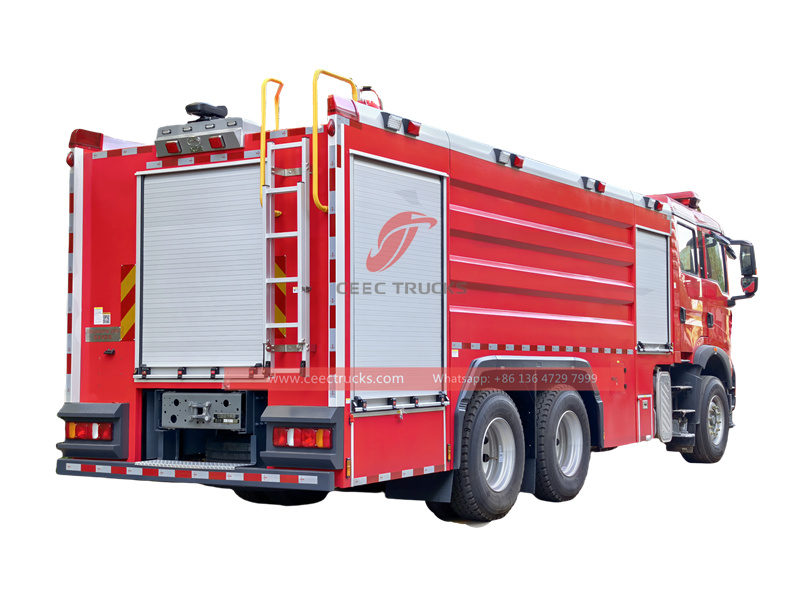

Он 6CBM fire water truck is built on the sturdy Howo TX double cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power WP.10.340E32, it can challenge all kinds of difficult roads. It’ s equipped with a 4 000 L large capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected.
Работоспособность:
6 CBMРазмеры (мм):
9800×2550×3600mmКолесная база (мм):
4600+1370 mmМощность двигателя:
340HPТип двигателя:
WP.10.340E32Привод оси:
6x4Коробка передач:
HW, manual, 10 F & 2 RЗамечания:
Tank capacity can be customizedОн 6CBM fire water truck is built on the sturdy Howo TX double cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power WP.10.340E32, it can challenge all kinds of difficult roads. It’ s equipped with a 4 000 L large capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected. At the same time, it provides a variety of optional configurations to meet different needs.

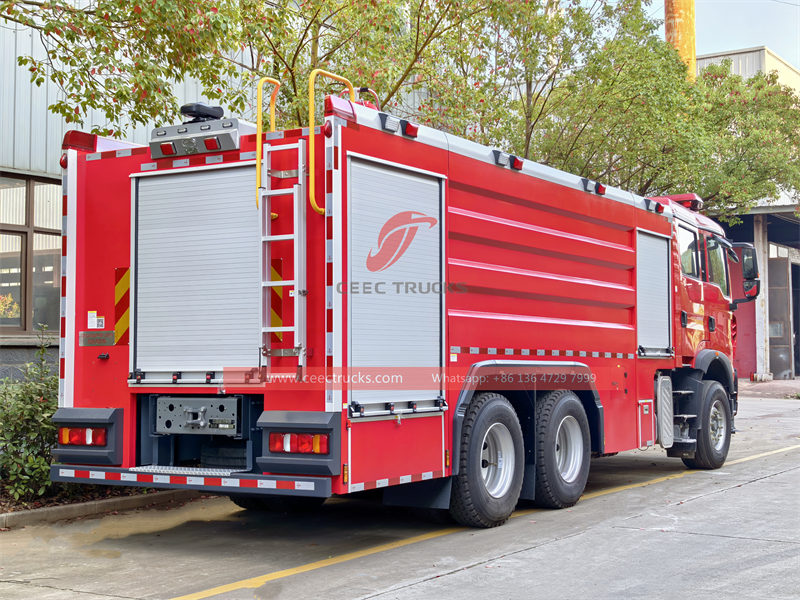

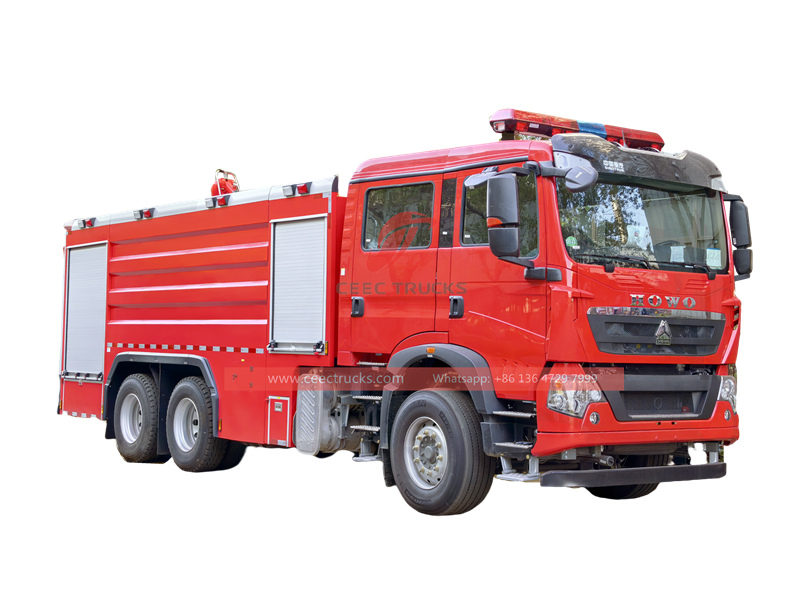

The Howo fire fighting truck with independent cabin provides enough space and quality to load firefighting equipment. The independent cabin can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions.
Manufacturer: CEEC Trucks Group
Features:
1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model
WP model with 340HP and Euro 2,3
2. Tank material:
4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose
3. Tanker body: Customized for Water + Foam + Dry Powder fire agent
4. Fire Pump:
CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 55m
Optional CB10/40,
CB10/60
also available Darley fire pump
5. Special design:
Super designed working temperature -41℃ to +48
℃ day and night, with efficiently working height over 5000m
Optional equipped CAFS foam system and Dry Powder system
Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue
|
Howo fire water truck |
||
|
Chassis Series |
Howo TX Series |
|
|
Vehicle Model |
CSC 5 18 03MXF |
|
|
Main specifications |
Manufactory |
CS Trucks Group |
|

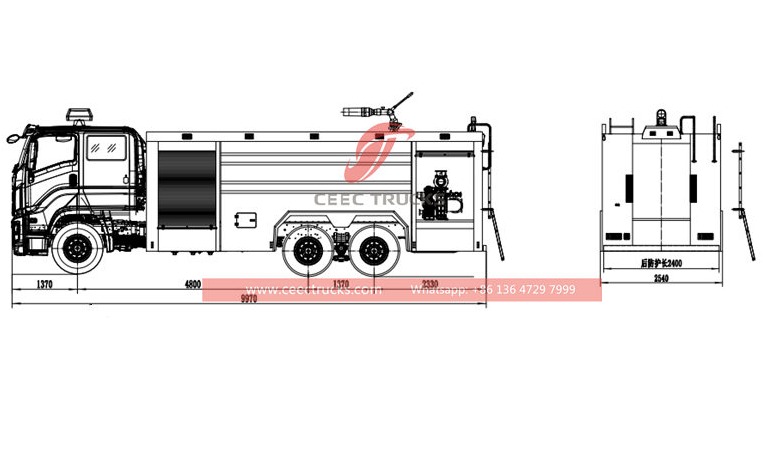

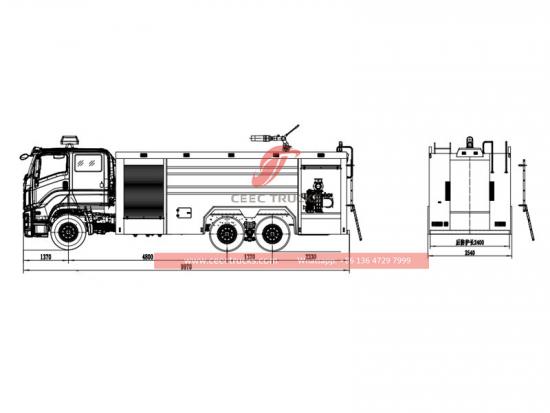

Overall dimension(L*W*H) |
86 00×2 48 0× 33 60mm |
|
|
GVW |
250 00Kg |
|
|
Curb weight |
125 00Kg |
|
|
Water tank volume |
4 ,000 liters |
|
|
Cabin |
Single cabin, 2seats,with Air conditioner, electronic windows, USB |
|
|
Independent cabin |
5 firefighter |
|
|
Wheel base |
4600+1370mm |
|
|
Driving type |
6*4 |
|
|
Chiassis model |
Howo |
|
|
Transmission |
Fast 8 -speed forward, 2 reverse |
|
|
Number of axles |
2 |
|
|
Tire specification |
12.00 R 20 18PR |
|
|
Number of Tires |
10 pcs with 1 spare tire |
|
|
Engine |
Engine model |
WP.10.340E32 |
|
Type of fuel |
Diesel |
|
|
Displacement/power |
9.839L / 340 Ps |
|
|
Maximum torque |
1 6 00N·m |
|
|
Max speed |
95 Km/h |
|
|
Emission standard(TAS) |
EURO 3 |
|
|
Fire performance |
Water t ank capacity |
4 000 L |
|
Fire pump |
China Top brand |
|
|
Model: CB10/ 4 0 |
||
|
Low-pressure: 4 0L/S |
||
|
Medium-pressure: 4 0L/S |
||
|

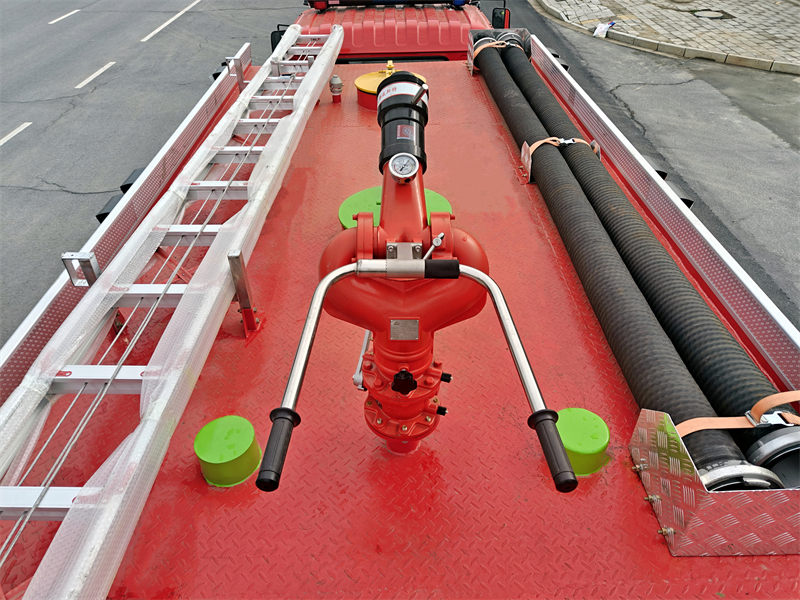

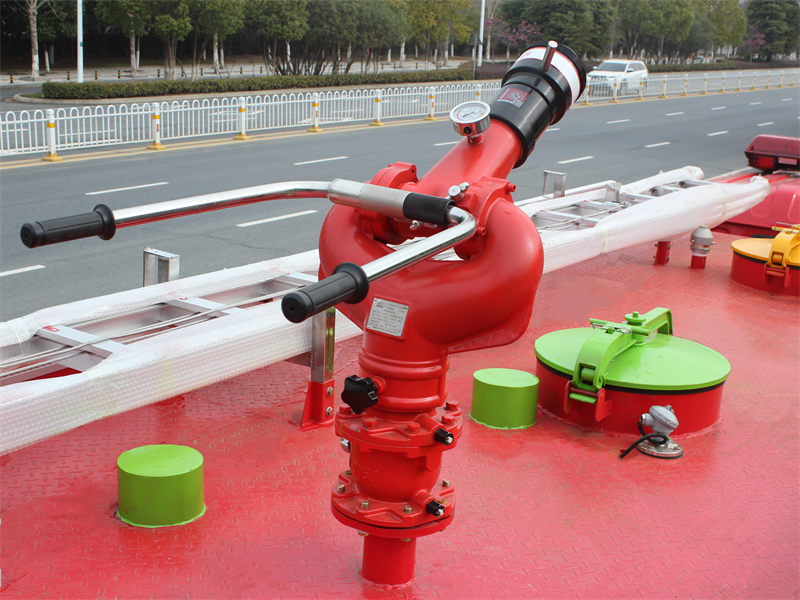

Fire monitor |
China t op brand |
|
|
Model:PL8/48 |
||
|
Working pressure: 1.0MPa |
||
|
Flow: 40 L/S |
||
|
Water jet distance:≥ 5 5m |
||
|
Rotation angle: 360° horizontally, -45° to 70° in pitch |
||
|
Fire pump Input |
1 unit, diameter: 100mm |
|
|

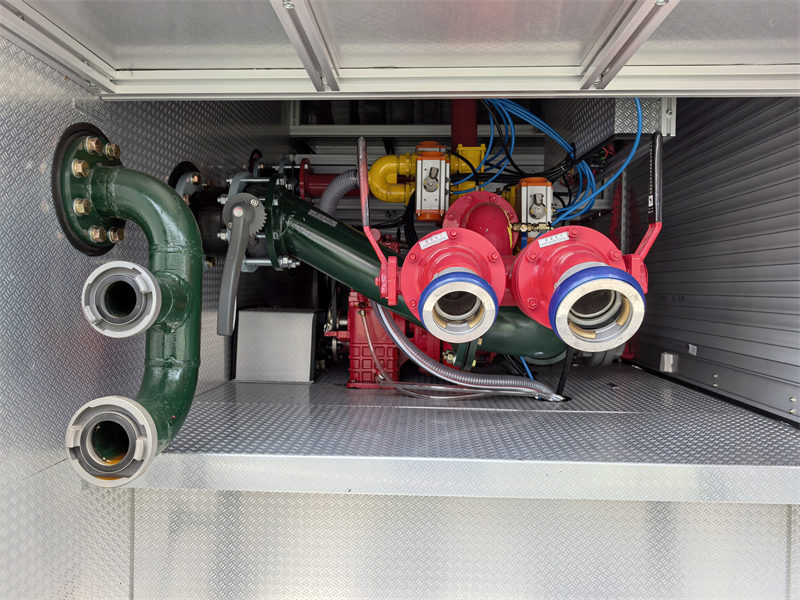

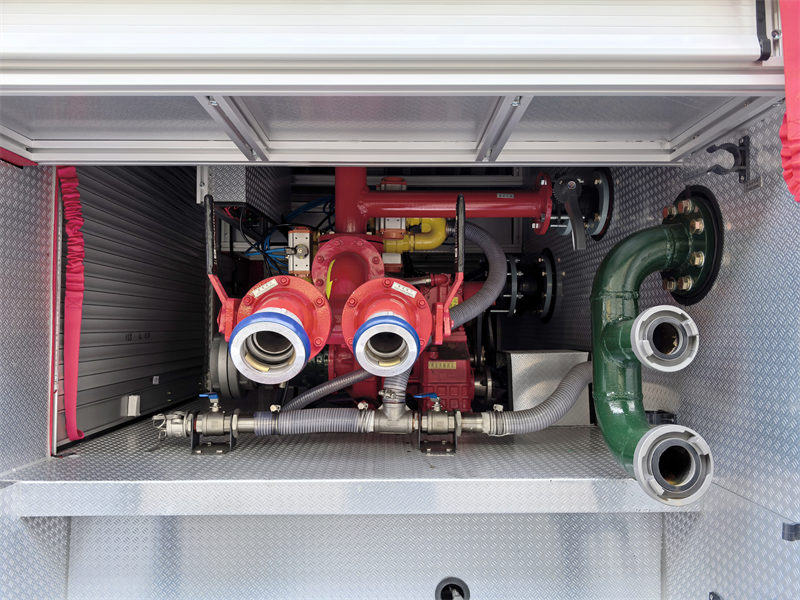

Fire pump Outlet |
2 units, diameter: 65mm 2 units,diameter: 85mm |
|
|
Standard configurations |
Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose |
|
CEEC Group R & D Department for design:
100% customized appearance, design the water + foam tank capacity, fire fighting tools storage box, also the whole truck size can be customized.

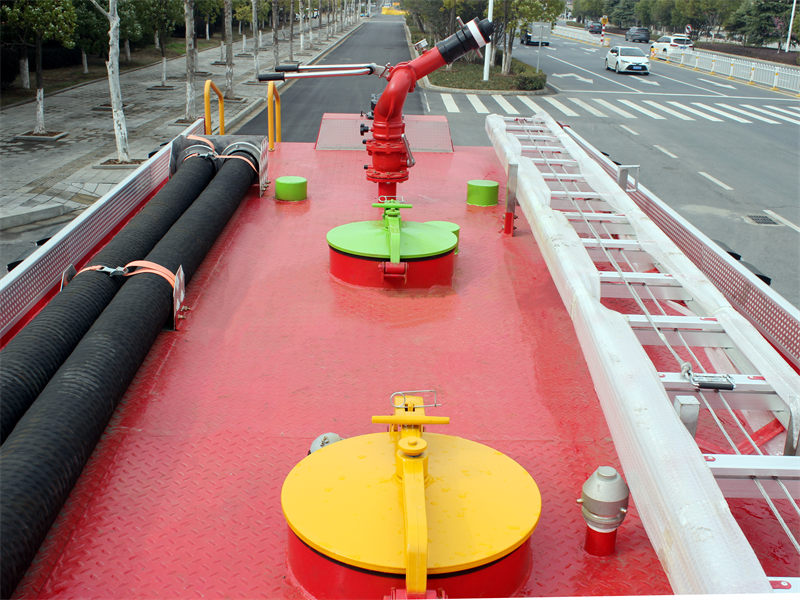

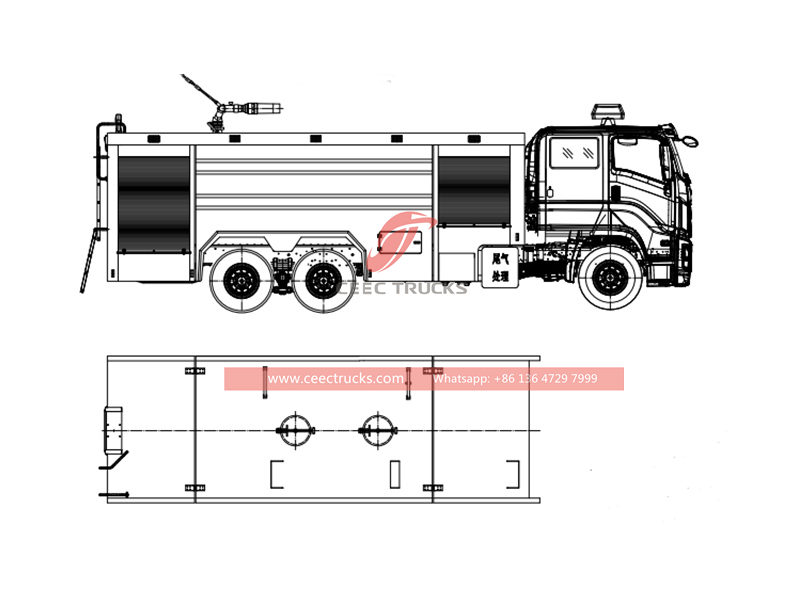

Tank System: The front part is the equipment room, where various firefighting equipment (such as fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.) are stored for easy access. In the middle, there is a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam tank, both equipped with manholes on top.
♦ With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 3 00 seconds (single water source mode).
♦ Standard CB10/ 4 0 mid-mounted centrifugal pump ( 4 0L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 40L/s) .
♦ W ater cannon range of 5 5m (DC)/ 4 8m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.
|

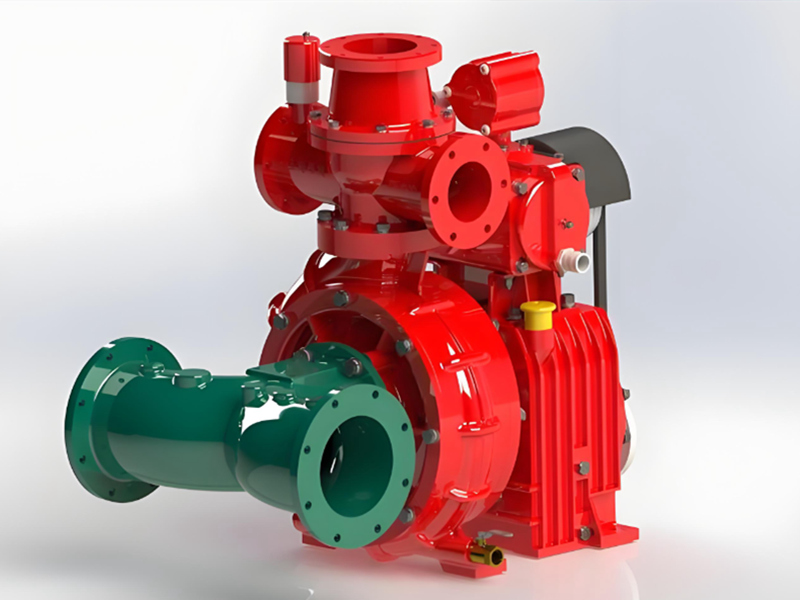

Fire pump Model |
Pressure |
Max working pressure |
Flux |
Rated speed |
Speed Ratio |
Max pressure |
Priming Time |
Head |
|
CB10/ 4 0-RS |
1.0MPa |
1. 380 MPa |
4 0L/s |
3 3 00± 3435 r/min |
1:1. 5 4 |
≥0. 40 MPa |
≤10s |
4 0m |

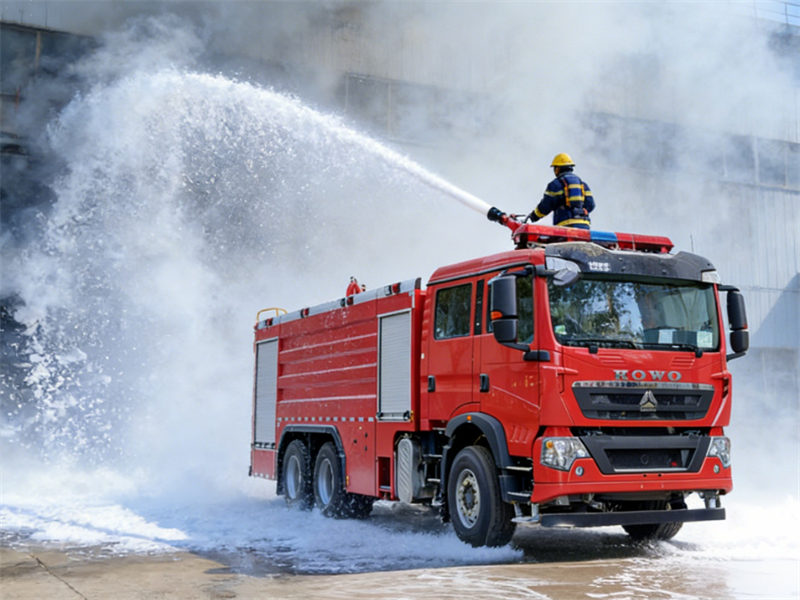

Howo foam fire trucks, through their combined effects of physically isolating oxygen, suppressing steam, and cooling to prevent reignition, have become a "trump card" for dealing with liquid fires and industrial fires.
♦ Foam effectively covers liquid surfaces, forming an insulating layer that blocks oxygen supply and rapidly suppresses oils, solvents, and chemical raw materials.
♦ For fires involving polar solvents (such as alcohol and acetone), alcohol-resistant foam can be used to prevent the foam layer from being destroyed.
♦ Foam can spread over a large area, rapidly covering the ignition source, making it suitable for three-dimensional fires (such as warehouse shelves and aircraft fuselages) and flowing fires.
|

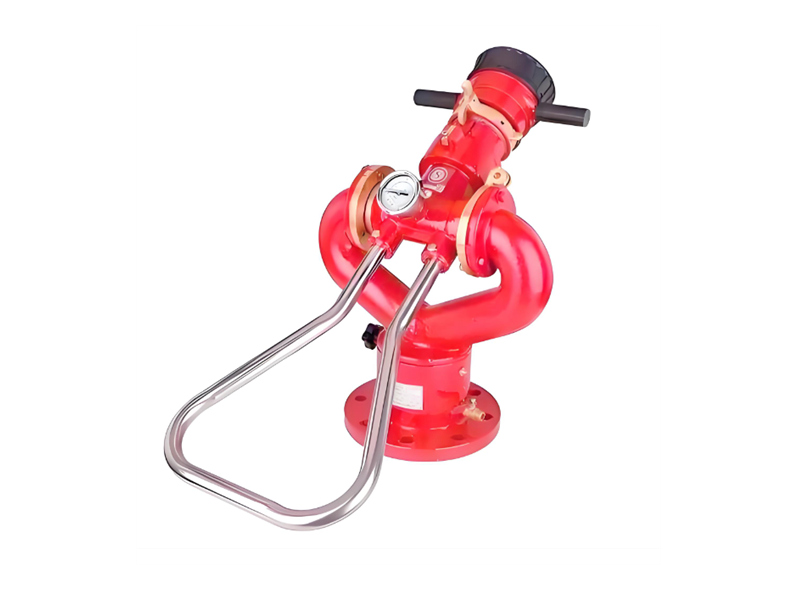

Fire Monitor Model |
Flow |
Range |
Rated Pressure |
Pitch Rotation |
Horizontal rotation |
Weight |
|
PL8/48 |
48L/s |
water ≥70m, foam ≥60m |
0.80MPa |
-45° ～ +70° |
0 ～ 360° |
27kg |
1. Chassis Performance:
Engine and Powertrain The Howo TX chassis is equipped with an WP10.340E32 diesel engine, delivering a maximum power of 340 HP and a torque of 1230 N·m.
Equipped with heavy-duty 295/80R22.5 tires, it offers a minimum turning radius of ≤12 meters and a wading depth of ≥800 mm, making it suitable for complex terrain and adverse weather conditions.
2.Structural design ：
The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools.
The interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.
»»» CEEC trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★ SINOTRUK WP 10.340E32 Euro 6 engine, super powerful
★ SINOTRUK HW Manual 10-shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized Howo 6000 liters water foam fire rescue truck
★ Training service for Howo TX 6CBM foam fire fighting truck .
Мы — профессиональный китайский поставщик и экспортер пожарных автомобилей, предлагаем высококачественные пожарные машины. Мы гарантируем быструю доставку и 12-месячную гарантию на наши пожарные машины с задней загрузкой. Наша продукция продается более чем в 80 странах, включая страны Восточной Европы и СНГ, Африку, Юго-Восточную Азию, Центральную и Южную Америку, Ближний Восток и др.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
